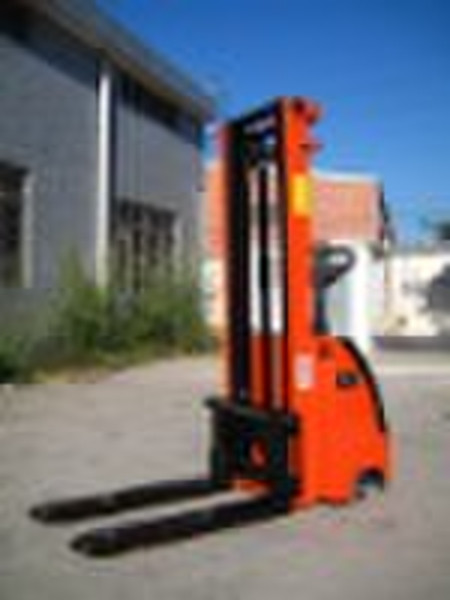

CDD10-25 Electric Stacker
Frances Zhang
Contact person
Basic Information
| Place of Origin | Guangdong China (Mainland) |
|---|---|
| Brand Name | liftmountains |
| Model Number | CDD10-25 |
| Rated Loading Capacity | 1000Kg |
| Max. Lifting Height | 2500mm |
| Min. Lifting Height | 88mm |
| Fork Length | 1050mm |
| Fork Width | 160mm |
| Overall Dimensions | 1920*850*1790mm |
| Type | Powered Pallet Truck |
| Power Souce | DC Motor |
| Condition | new |
Model CDD10-25 Maximum.Load 1000kg Maximum.Lifting.Height 2500mm Machine.Maximum.Height 3000mm Load.Center 400mm Fork.Minimum.Ground.Clearance ≤88mm Standard.Fork.Outer.Width 700(Adjustable) Fork.Size(Length*Width*Thickness) 1050mm*16 0mm*55mm Minimum.Turning.Radius 1700mm Front.and.Rear.Wheel.Base 1230mm Front.Wheel.Distance 510mm Minimum.Channel.Width 2000mm Full.Load.Maximum.Driving.Speed 3km/h No.Load.Maximum.Driving.Speed 3.5km/h Full.Load.Maximum.Lifting.Speed 0.121m/s No.Load.Maximum.Lifting.Speed 0.136m/s Full.Load.Maximum.Lowering.Speed 0.204m/s No.Load.Maximum.Lowering.Speed 0.125m/s Full.Load.Maximum.Gradient 5% No.Load.Maximum.Gradient 7% Driving.Motor.Power 0.75kw Lifting.Pumps.Power 24V-2kw Battery.Voltage 24V Battery.Capacity 120Ah*2 Specification.of.Charger 24V-15A Controller/Model/Specification CUTIS/124 3/200A Weight.with.Battery 550kg Machine.Length.with.Pedal 2460mm Machine.Length.without.Pedal 1920mm Machine.Width 850mm Machine.Height 1790mm
Delivery terms and packaging
Packaging Detail: simple package Delivery Detail: 30days
Port: shenzhen
